Your current location：Home>Products>Drawing Frame

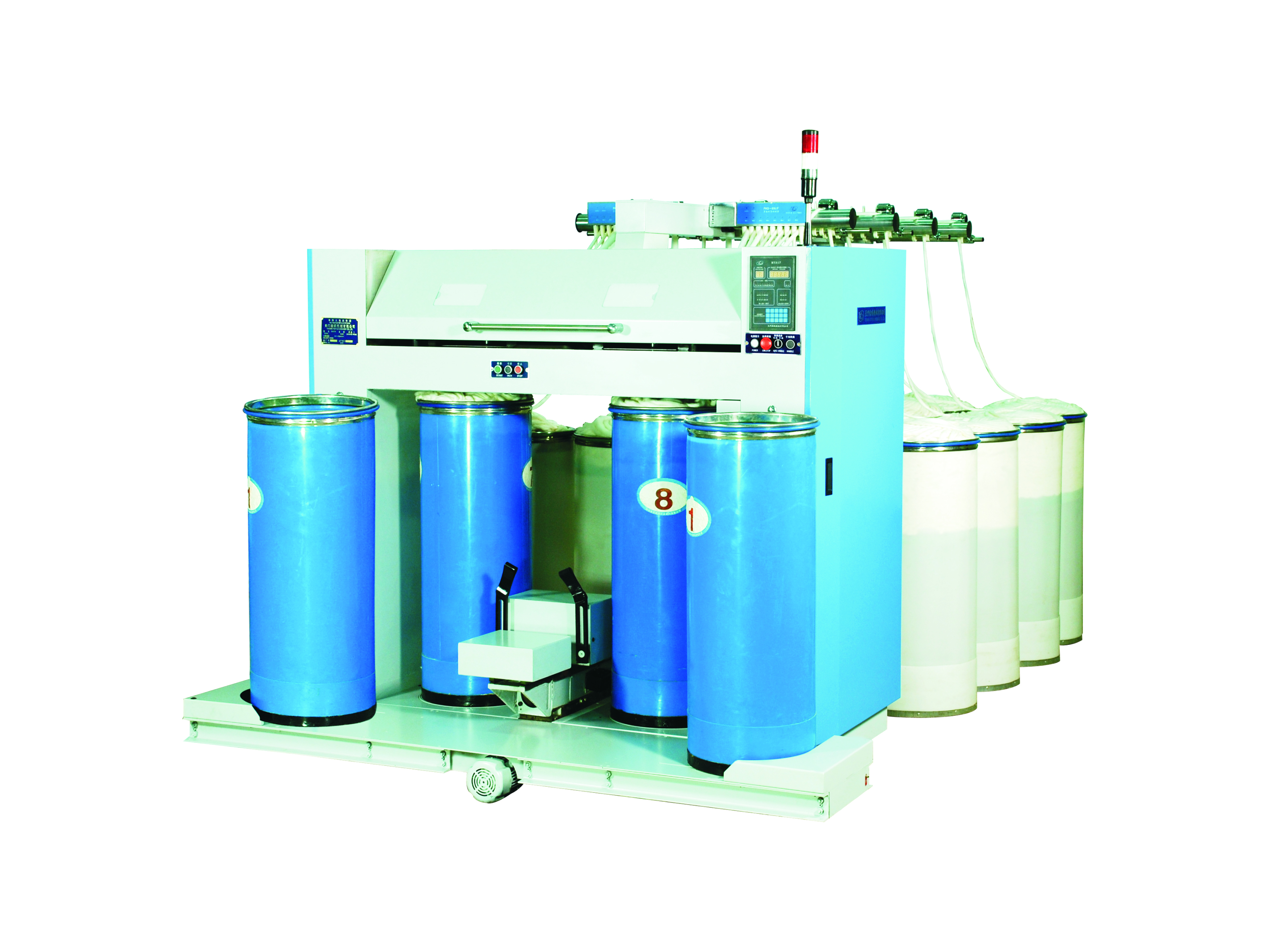

FA317A

FA317A

Salient Features:
1.Rational drafting system, compact driving system, higher speed, perfect sliver guiding mechanism and advanced cleaning system.

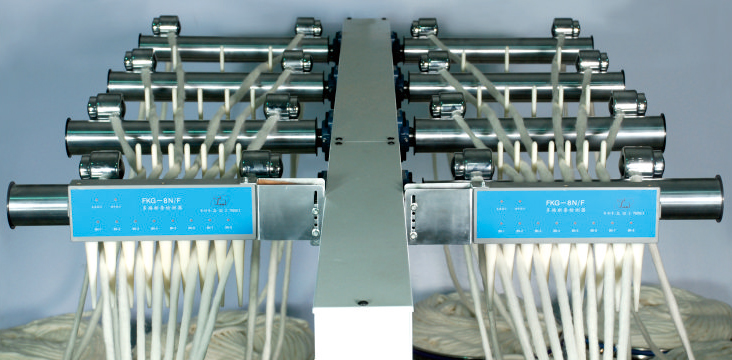

2.Mechanical stop and eight-channel photoelectric.
3.Top cleaning adopts floating metal bar or rotary flannelette. Technical specifications:

Range of Application Fiber length up to 76mm combed and carded cotton, chemical fiber and blends
Number of Delivery Two
Output Speed 311~700m/min
Doubling 6~8
Roller Dia. Top Roller ￠37 ￠37 ￠37mm
Bottom Roller ￠45 ￠30 ￠30mm
Drafting System 3 over 3 double zone curvilinear drafting system with upholding pressure bar
Total Draft (between 1st and 3rd rollers) 5.427~9.849
Can Size Input ￠400 ￠500 ￠600 ￠800 ￠900 ￠1000mm Height 900 or 1100mm
Output ￠350 ￠400 ￠500mm Height 900 or 1100mm
Feeding Form Individual sliver pressure roller overhead creel lengthwise positive feeding in synchronous drive
Main Motor 3.5Kw
Power of suction blower 1.5Kw


Product components：
FA317A
